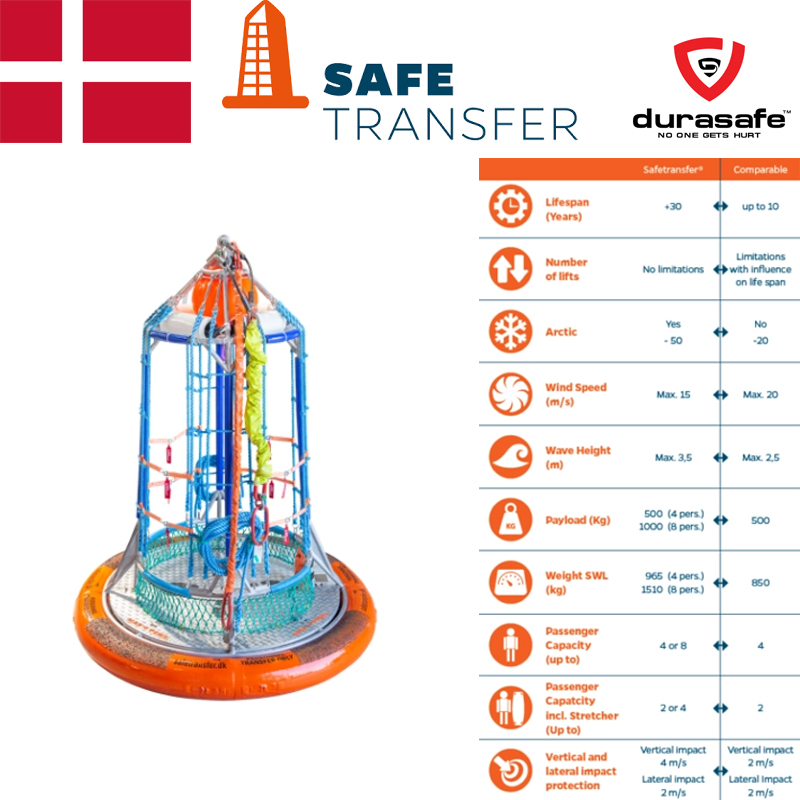

WEST MARINE Safe Transfer Basket 4 Persons

Ensures, safe, quick and cost-effective personnel transfer, between offshore installations, drilling rigs and wessels.

The basket is constructed to considerably enhance safety and confidence levels for personnel during transfers. SAFE TRANSFER®

is certified by DNV GL.



• Height 3222 mm

• Diameter 2600 mm

• Tare 465 kg

• Capacity 500 kg or 4-person

• RIGID STRUCTURE – 1The inside vertical structure of the SAFE TRANSFER® baskets are covered with synthetic foam and tarpaulin for protection of passengers

• WELDING – All weldings are performed by certified welders and in accordance with procedures approved by DNV GL. All primary structure weldings are fully penetrant tested

• NON-SKID SURFACE – All entrances/exits and floor arefitted with non-skid pattern to ensure safe entrance and exit

• TOP-NET AND FLOAT – Top-net for protection of dropobjects. Floating fender top and bottom

• LIFTING SLING SET – SAFE TRANSFER® are delivered with lifting sling and compensator, covered with a highly visible material. The compensator serves as a tag line, helping to control the basket by the crane operator. Lifting set length: 3 m or 5 m

• ROPE WEBBING – Four rope webbings, made of spliced rope, are attached to the upper and lower structure. The rope webbings provide extra safety for personnel inside the basket

• CLOSING STRAPS – Rope webbings are fitted with fast clickbuckle straps ensuring fast and easy exit. Options available

• SHOCK/IMPACT PROTECTION – Orange PUR fender to protect passenger for harmful deceleration by landing, and if the basket is subjected to a lateral impactdue to swinging against an obstruction

• DNV GL – Type Approval Certificate

The standard for Certification 2.22 Lifting Appliances

• ABS – PDA Product Design Assessment

• Danish Technological Institute (Notified Body)

• European Standard EN 14502-1:2010

Cranes-Equipment for the lifting of persons Part 1. suspended baskets

• NDT (Non-Destructive Testing) and load test

• Certified lifting sling
