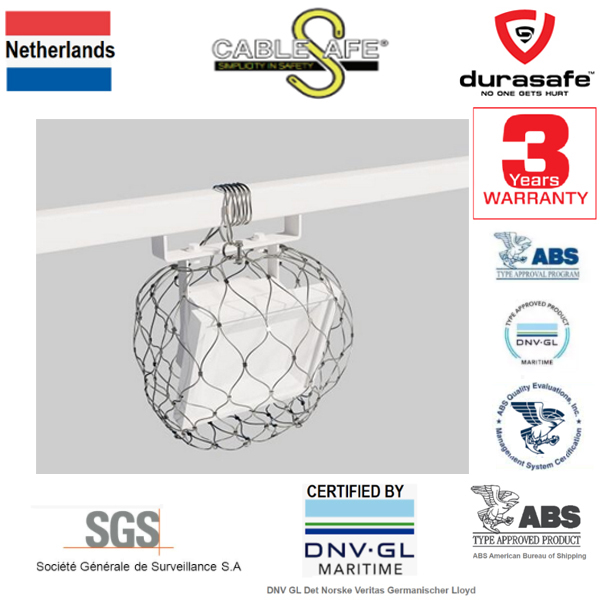

DOPSN-50X50X50 Dropped Objects Prevention Safety Net 500x500x500mm 2.5mm Lanyard

Anti-Drop Safety Netting. Dropped objects are a major source of incidents in heavy industries. In the drilling industry offshore dropped objects are listed in the top ten of most frequent incidents. By securing overhead fixtures items at height (e.g. speakers, cctv camera, navigation lights, flood lights or strip / TL lights, etc.) using secondary locking devices and additional securing techniques incidents are prevented and risk for dropping or falling objects is reduced significantly for people working below these items.

Safety Nets Fit-To-Size are used for secondary retention. It secures, encloses and tethers overhead fixtures to prevent dropped objects to the work floor when its primary attachment (or installation bracket) fails. The Safety Net Fit-to side is designed for onshore and offshor conditions and has warranty for 3 years.

The Safety Net Ø 2.5mm provides a beakload of 273 kg. safe work load of 54.6 kg. An avergae overhead light fixture used on board offshore platforms weight about 20 kg.

• Material – Stainless Steel AIS 316

• Aperture – 100mm Mesh Width

• Type – Ferrule Mesh

• Cable Type – 7 x 7

• Ø Rope – 2.5mm

• kN – 2.75 (Breaking Load)

• Quality Standard – 1770 N/mm2
